MASC
Regular price
CHF 2,123.52
Regular price
Sale price
CHF 2,123.52
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

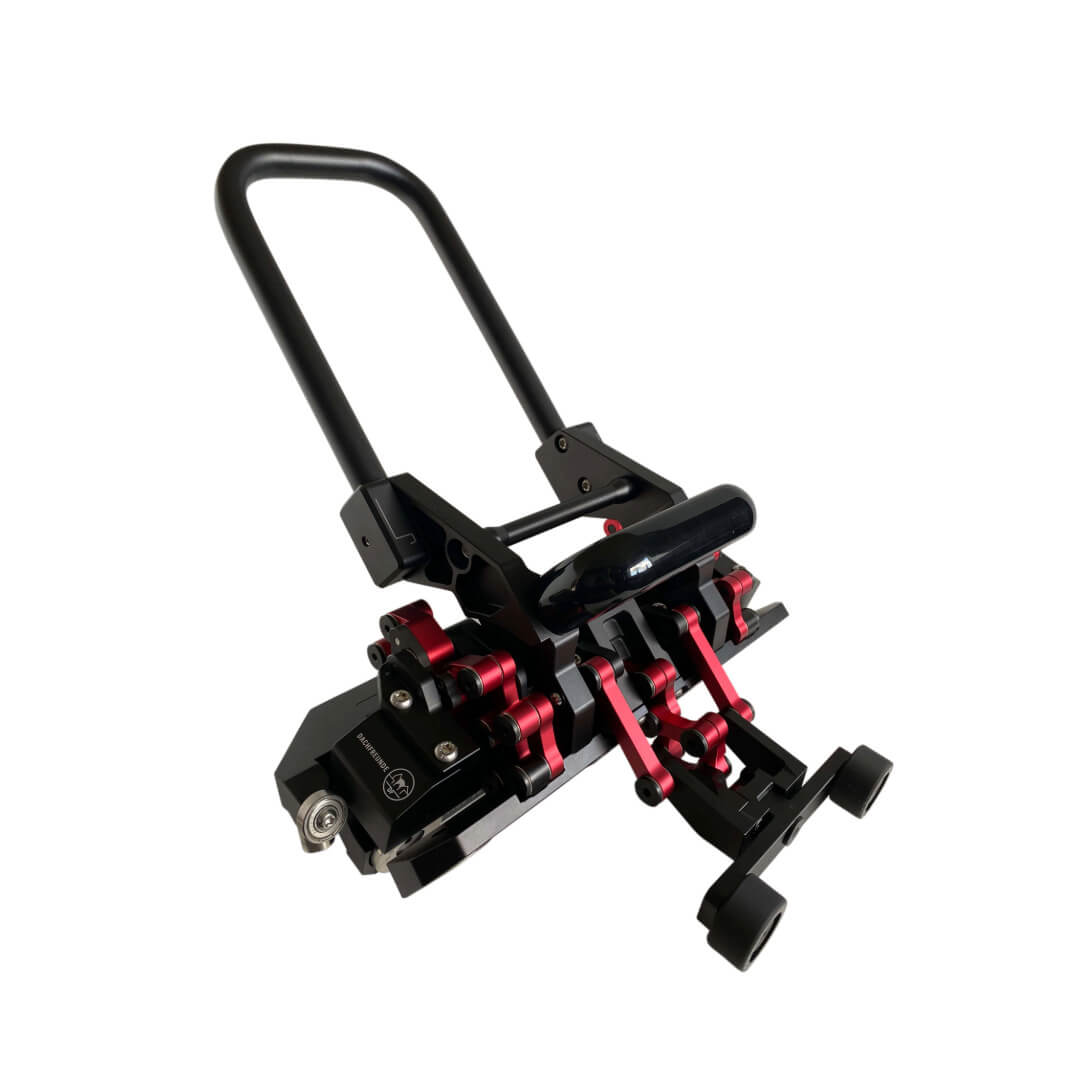

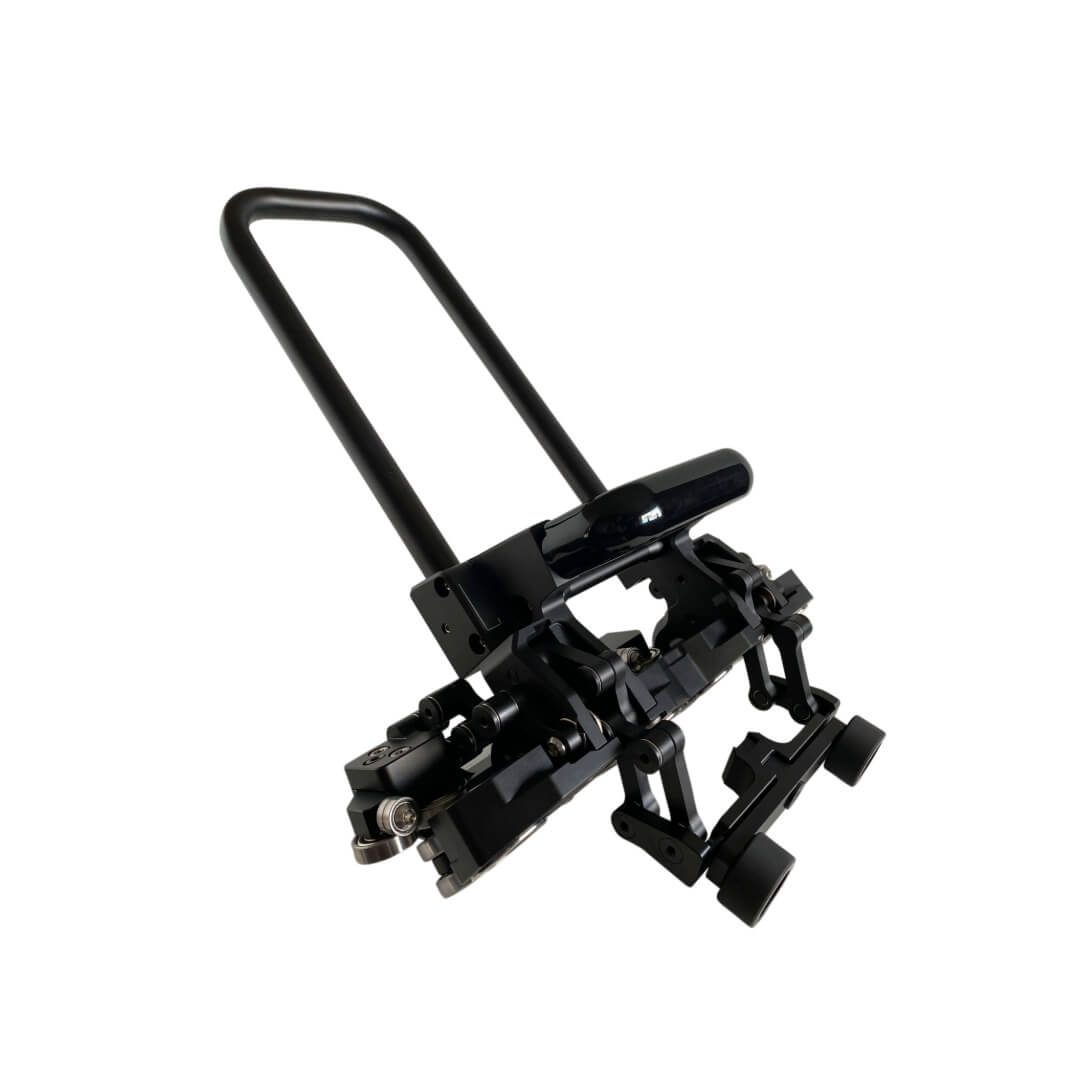

Underlap or overlap in one pass. The Seam Former Duo Pro-Line makes fitted panels right on site – and saves up to two passes compared with conventional roll formers. Fewer steps, the same result, much faster.
TWO VERSIONS – CHOOSE YOURS
| Underlap former (black) | Makes the underlap in one pass. Weight 4.55 kg. |
| Overlap former (black/red) | Makes the overlap in one pass. Weight 5.3 kg. |
WHAT YOU NEED IT FOR
- Produce the underlap or overlap in one pass
- Make fitted panels efficiently on site – no trip to the workshop
- Saves up to 2 passes compared with conventional roll formers
- Makes producing underlap and overlap enormously easier
- Supplied in impact-resistant plastic case incl. care kit
MAXIMUM MATERIAL THICKNESSES
| Copper, zinc, aluminium | 0.8 mm |
| Steel sheet | 0.7 mm |
| Stainless steel | 0.5 mm |
TECHNICAL DATA
| Versions | underlap former (black) / overlap former (black/red) |
| Weight | underlap former 4.55 kg / overlap former 5.3 kg |
| Application | producing underlap and overlap, fitted panels |
| Where used | site |
| Scope of delivery | seam former, impact-resistant plastic case, care kit |
GOOD TO KNOW
- Check the material thickness before use: the limits differ by material – for stainless steel the limit of 0.5 mm is much lower than for copper, zinc and aluminium
- Underlap former and overlap former are separate tools – if you make both, you need both versions
Scope of delivery & weight
Scope of delivery & weight

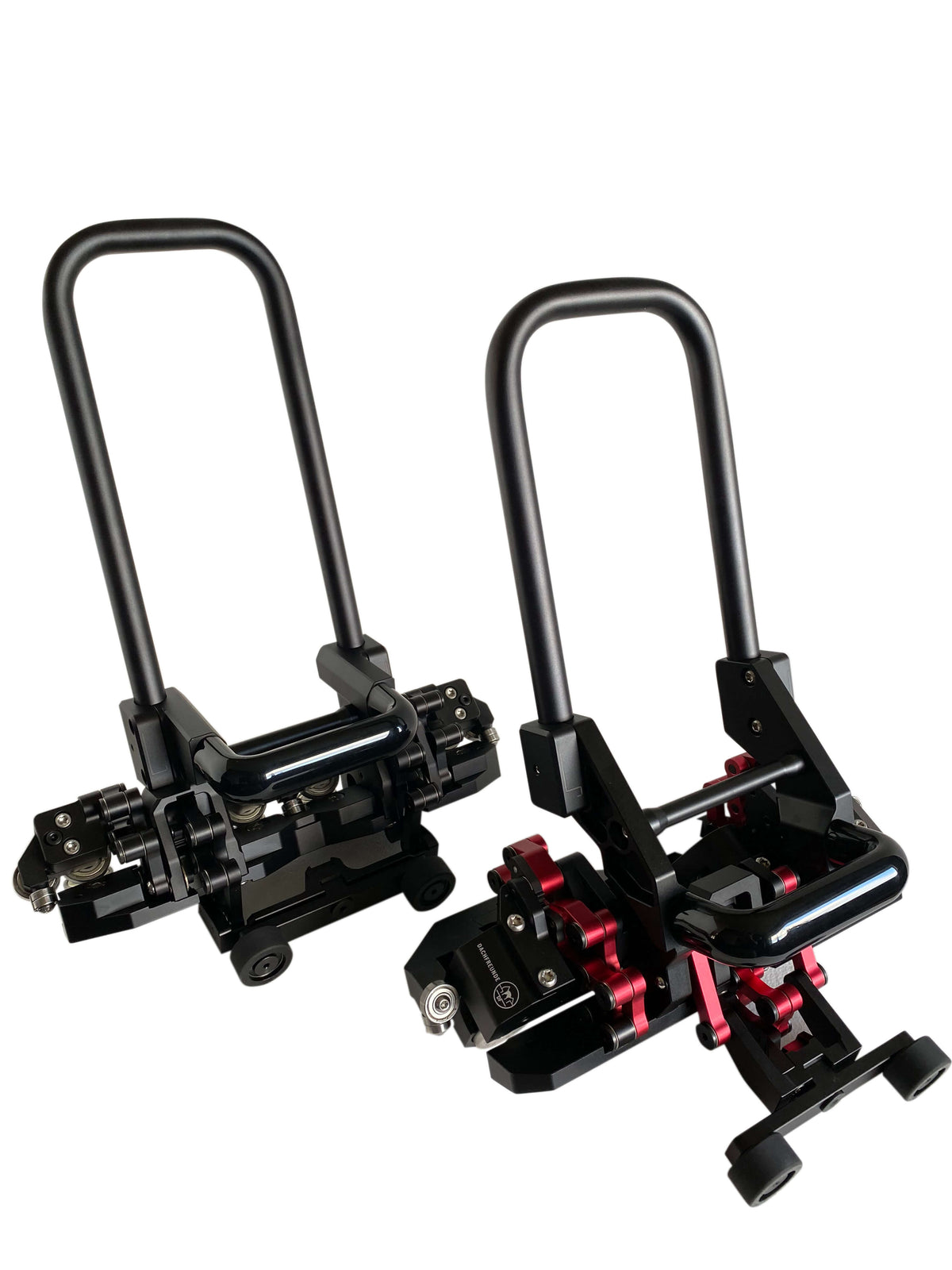

1 x MASC seam former Duo Pro-Line consisting of: underlap roll former (black) & overlap roll former (black/red)
Underlap roll former (black): 4.55 kg
Overlap roll former (black/red): 5.3 kg
Total weight (incl. case): 15.80 kg
Delivery
Delivery
Delivery time: 3–5 working days
Dimensions
Dimensions
Dimensions:
One blade:
L: 70 cm
W: 5 cm
H: 0.7 cm
